Product Overview
• Ideal for demanding operating conditions in critical applications
• Double the media area typically found in standard HEPA filters for longer filter life and fewer changeouts
• V-bank design for maximum effective media area and minimal resistance to airflow
• Extremely low resistance and long filter life means a much lower Total Cost of Ownership
• Chemical-resistant anodized aluminum frame provides superior strength
• One-piece polyurethane gasket seal and gel seal designs available

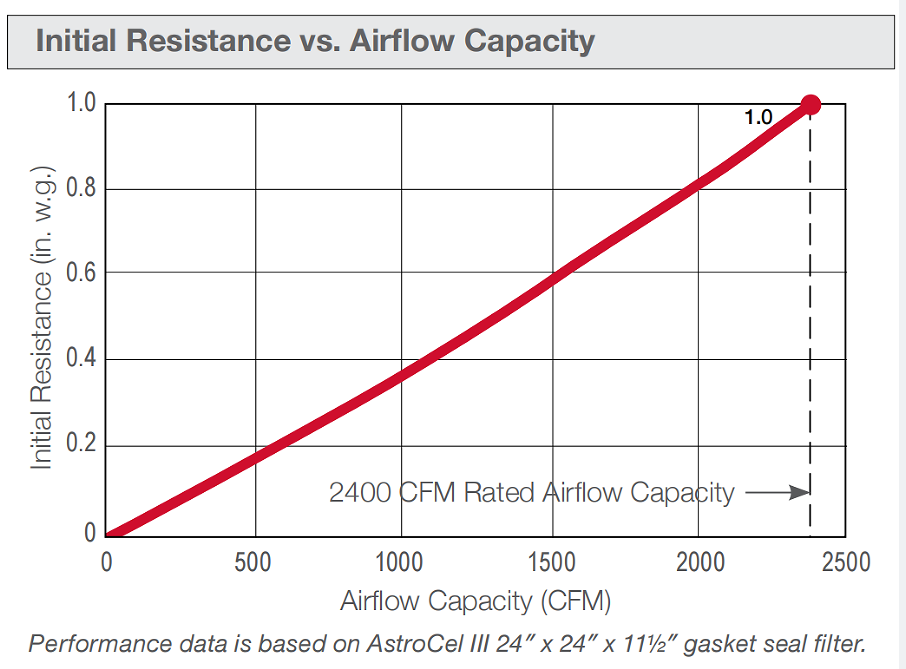

• 436 sq. ft. of media, 99.99% efficiency, and 1.0″ w.g. pressure drop at 2400 CFM (24 x 24 x11½ gasket seal configuration)
Specifications
Efficiency | HEPA |
Filter Depth | 12″ |
Media Type | Microglass |
Frame Material | Anodized Aluminum |
Special Size Available | No |
Antimicrobial Available | No |
Frame Style | Gel Seal, Gasket Seal |
Separator Style | Glass Filament |
Max Operating Temperature | 200°F (93°C) |
Product Information
Part Number | Actual Size Inches (H x W x D) | Rated Airflow SCFM @ 1.0ʺ w.g. | Std. Pkg. Qty. Per Carton | Shipping Wt. Lbs. per Box (± 7%) | Cubic Ft. |
Gasket Seal Filters | |||||
ASFWG242411 | 24 x 24 x 11½ | 2400 | 1 | 42.0 | 4.5 |
ASFWG241211 | 24 x 12 x 11½ | 900 | 1 | 30.0 | 2.8 |
ASFWG232311 | 23⅜ x 23⅜ x 11½ | 2325 | 1 | 41.0 | 5.0 |
ASFWG231111 | 23⅜ x 11⅜ x 11½ | 875 | 1 | 29.0 | 2.7 |
Gel Seal Filters, without Extractor Clips | |||||
ASFWGE242411 | 24 x 24 x 11½ | 2150 | 1 | 42.0 | 5.3 |
ASFWGE241211 | 24 x 12 x 11½ | 800 | 1 | 30.0 | 2.8 |
ASFWGE232311 | 23⅜ x 23⅜ x 11½ | 2075 | 1 | 41.0 | 5.0 |
ASFWGE231111 | 23⅜ x 11⅜x 11½ | 775 | 1 | 29.0 | 2.7 |
