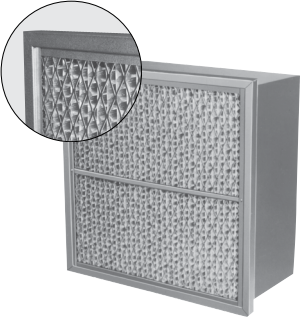

Product Overview
• Designed for continuous operating temperatures as high as 900°
• Aluminized steel frame with aluminized steel faceguards and bar braces on both sides for superior strength, along with heat
and corrosion resistance
• Dual-density media increases filter life and reduces operating costs
• Can also be used at lower temperatures to extend service life
• MERV 14 meets LEED® Project Certification efficiency requirements
• UL Classified
Specifications
Efficiency | MERV 14, MERV 11 |  |
Filter Depth | 12″ | |
Media Type | Dual-Density Microfiberglass | |
Frame Material | Aluminized Steel | |
Separator Style | Corrugated Aluminum | |
Special Size Available | No | |
Antimicrobial Available | Yes | |
Header Style(s) | Single | |
Max Operating Temperature | 500°F (260°C), 725°F (385°C) |
Product Information
Part Number | Nominal Size Inches (W x H x D) | Actual Size Inches (W x H x D) | Gross Media Area (Sq. Ft.) | Rated Airflow Capacity (CFM) | Std. Pkg. Qty. Per Carton | Shipping Wt. Lbs. per Box | Cubic Ft. |
Single Header Standard Sizes | |||||||
500°F (Type HT-500) MERV 14 | |||||||
VHT54242412 | 24 x 24 x 12 | 23³⁄₁₆ x 23³⁄₁₆ x 11½ | 125 | 2,000 | 1 | 19.0 | 4.3 |
VHT50122412 | 12 x 24 x 12 | 11³⁄₁₆ x 23³⁄₁₆ x 11½ | 57 | 1,000 | 1 | 11.5 | 2.2 |
500°F (Type HT-500) MERV 11 | |||||||
VHT51 242412 | 24 x 24 x 12 | 23³⁄₁₆ x 23³⁄₁₆ x 11½ | 105 | 2,000 | 1 | 14.0 | 4.3 |
VHT51122412 | 12 x 24 x 12 | 11³⁄₁₆ x 23³⁄₁₆ x 11½ | 47 | 1,000 | 1 | 11.0 | 2.2 |
725°F (Type HT-725) MERV 14 | |||||||
VHT74242412 | 24 x 24 x 12 | 23³⁄₁₆ x 23³⁄₁₆ x 11½ | 140 | 2,000 | 1 | 20.0 | 4.3 |
VHT74122412 | 12 x 24 x 12 | 11³⁄₁₆ x 23³⁄₁₆ x 11½ | 62 | 1,000 | 1 | 12.0 | 2.2 |
725°F (Type HT-725) MERV 11 | |||||||
VHT71242412 | 24 x 24 x 12 | 23³⁄₁₆ x 23³⁄₁₆ x 11½ | 140 | 2,000 | 1 | 20.0 | 4.3 |
VHT71122412 | 12 x 24 x 12 | 11³⁄₁₆ x 23³⁄₁₆ x 11½ | 62 | 1,000 | 1 | 12.0 | 2.2 |
