Product Overview

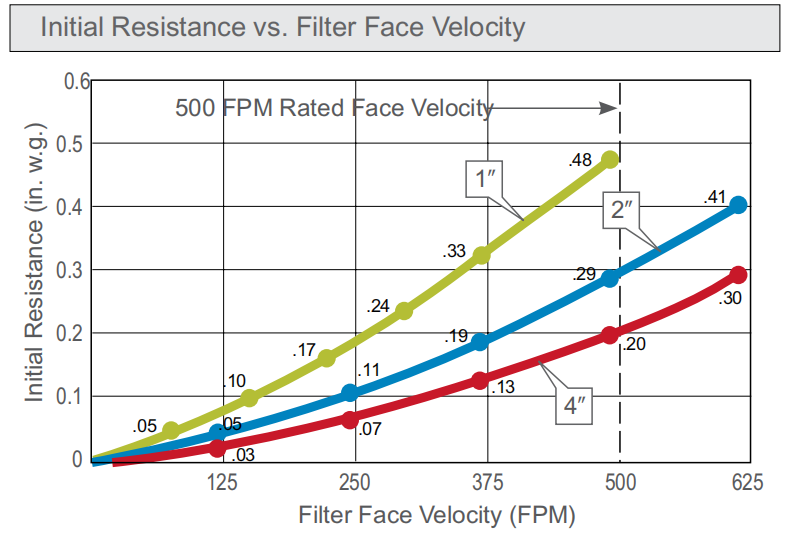

• Low operating resistance saves energy
• Highest Dust Holding Capacity (DHC) = Longest life
• Highest breach strength = strongest construction
• Guaranteed consistent performance – independent, third party testing
• Patent-pending filter design
• Heavy-duty, galvanized expanded metal support grid – no rust
• Moisture-resistant adhesive
• Available in 1″, 2″, and 4″ models
• High Capacity, MERV 8
Specifications
Effeciency | MERV 6-8 |
|
Filter Depth | 1″, 2″, 4″ | |
Media Type | Synthetic | |
Frame Material | Beverage Board | |
Special Size Available | No | |
Antimicrobial | No | |
Max Operating Temperature | 200°F (93°C) | |
| Air Filtration Certification | UL 900, ULC-S111 |
Product Information
Part Number | Nominal Size Inches (W x H x D) | Actual Size Inches (W x H x D) | Std. Pkg. Qty. | Shipping Wt. Lbs. per Box (± 7%) | Cubic Ft. |
1″ | |||||
Pf122401 | 12 x 24 x 1 | 11⅜ x 23⅜ x ¾ | 12 | 7.1 | 3.7 |
PF162001 | 16 x 20 x 1 | 15½ x 19½ x ¾ | 12 | 7.9 | 1.9 |
Pf162501 | 16 x 25 x 1 | 15½ x 24½ x ¾ | 12 | 9.8 | 2.4 |
Pf202001 | 20 x 20 x 1 | 19½ x 19½ x ¾ | 12 | 10.0 | 2.3 |
Pf202501 | 20 x 25 x 1 | 19½ x 24½ x ¾ | 12 | 12.3 | 3.0 |
Pf242401 | 24 x 24 x 1 | 23⅜ x 23⅜ x ¾ | 12 | 14.2 | 4.0 |
2″ | |||||
Pf122402 | 12 x 24 x 2 | 11⅜ x 23⅜ x 1¾ | 12 | 11.7 | 3.6 |
Pf162002 | 16 x 20 x 2 | 15½ x 19½ x 1¾ | 12 | 13.0 | 4.0 |
Pf162502 | 16 x 25 x 2 | 15½ x 24½ x 1¾ | 12 | 16.3 | 5.0 |
Pf202002 | 20 x 20 x 2 | 19½ x 19½ x 1¾ | 12 | 15.0 | 4.5 |
Pf202402 | 20 x 24 x 2 | 19⅜ x 23⅜ x 1¾ | 12 | 19.5 | 5.9 |
Pf202502 | 20 x 25 x 2 | 19⅜ x 24½ x 1¾ | 12 | 20.3 | 6.2 |
PF242402 | 24 x 24 x 2 | 23⅜ x 23⅜ x 1¾ | 12 | 23.4 | 7.1 |
4″ | |||||
Pf122404 | 12 x 24 x 4 | 11⅜ x 23⅜ x 3¾ | 6 | 11.8 | 3.7 |
Pf162004 | 16 x 20 x 4 | 15⅜ x 19⅜ x 3¾ | 6 | 13.2 | 5.2 |
Pf162504 | 16 x 25 x 4 | 15⅜ x 24⅜ x 3¾ | 6 | 16.4 | 5.2 |
Pf202004 | 20 x 20 x 4 | 19⅜ x 19⅜ x 3¾ | 6 | 16.4 | 5.2 |
Pf202504 | 20 x 25 x 4 | 19½ x 24½ x 3¾ | 6 | 20.6 | 6.5 |
Pf242004 | 24 x 20 x 4 | 23⅜ x 19⅜ x 3¾ | 6 | 20.7 | 6.2 |
Pf242404 | 24 x 24 x 4 | 23⅜ x 23⅜ x 3¾ | 6 | 23.7 | 7.5 |
