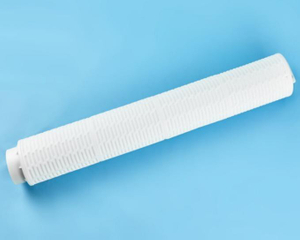

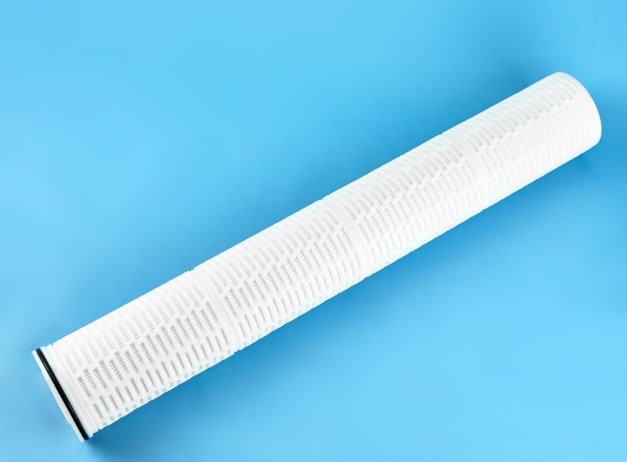

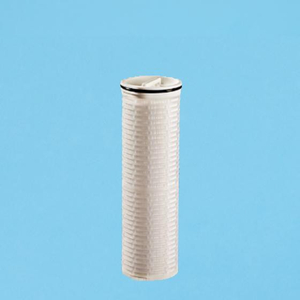

HFA series high flow filter cartridge

Description

Zhengmai HFA series high flow filter cartridge adopts ultra-fine polypropylene filter membrane, with 6-inch large-diameter structure and horizontal folding technology, to maximize the membrane filtration area. The high throughput features greatly reduce the number of filter cartridges and shell size under the same flow conditions, thereby reducing the equipment investment cost and labor cost.

Feature advantages

√ Super large filtration area

√ High quality PP filter membrane to ensure filtration efficiency

√ Up to 10 layers of membrane structure, multiple choices

√ Infrared welding technology is adopted, and no adhesive is used.

ISO9001 and ISO13485 double quality system management

Filtration area

≥5.5m² /40"

Typical Applications

It is widely used in the security filtration of RO, EDI and other equipment in the water treatment, coal chemical, seawater desalination and thermal power plant industries.

Flow characteristics

Material structure

Filter material: polypropylene (PP)

Center rod, outer framework and end cover: polypropylene (PP)

Diversion layer: polypropylene (PP)

Washer and gasket: fluororubber, wrapped with PTFE, EPDM

Filter cartridge dimension

Outer Diameter：165mm

Length： 20，40inch or 60inch

Operating characteristics

Operating temperature ＜ 80 ℃

Forward withstand voltage 4bar (23 ℃)

Reverse withstand voltage 2bar (23 ℃)

Filteration precision（μm）

1, 3, 5, 10, 50 ，100

Connect Type

Ordering Information
