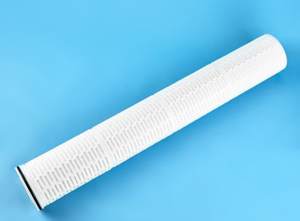

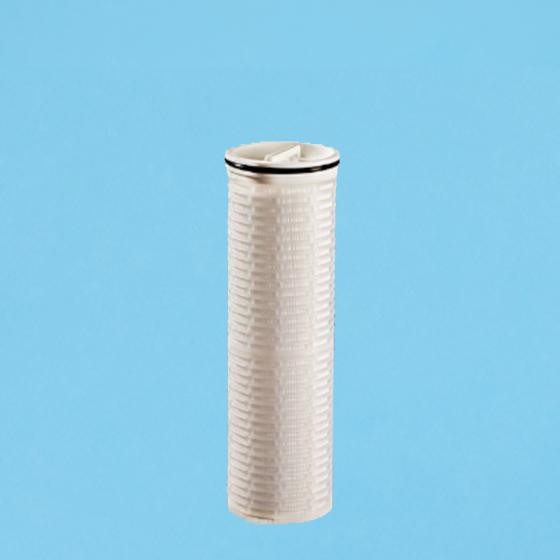

HTR series high flow filter cartridge

Description

Zhengmai HTR series high flow filter cartridge adopts imported polyester injection molding framework. Compared with ordinary PP core filter cartridge, it can provide a working temperature above 120 ℃ in addition to ensuring the overall flow life. With the corresponding polyester film, the problem of swelling deformation of conventional PP materials in benzene and alkane solvents can be perfectly solved.

Typical Applications

It is widely used in fine chemical industry, water treatment, battery separator and other working conditions where there are alkane solvents (such as white oil) or high temperature resistance requirements.

Filtration area

≥5.5m² /40"

Feature advantages

√  Imported high-temperature resistant resin materials

√  The core, support layer and all of them are made of polyester materials

√  Operating temperature above 120 ℃

√ Each filter element passes the test before leaving the factory, so that the filtering is more guaranteed.

Flow characteristics

Material structure

Filter material: Polybutylene terephthalate (PBT)

Center rod, outer framework and end cover: PBT

Diversion layer: PET

Washer and gasket: fluororubber, wrapped with PTFE, EPDM

Operating characteristics

Operating temperature ＜ 131 ℃

Forward withstand voltage 4bar (23 ℃)

Reverse withstand voltage 2bar (23 ℃)

Filter cartridge dimension

Outer Diameter：165mm

Length： 20，40inch or 60inch

Filteration precision（μm）

1,  3,  5,  10,  50 ，100

Connect  Type

Ordering Information
