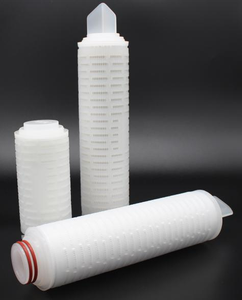

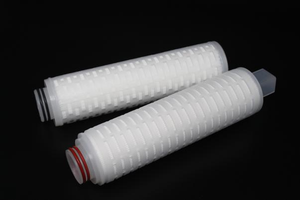

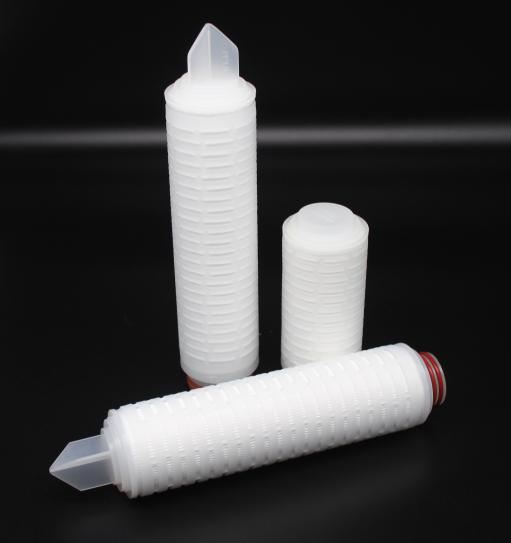

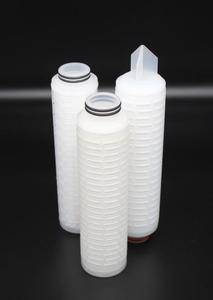

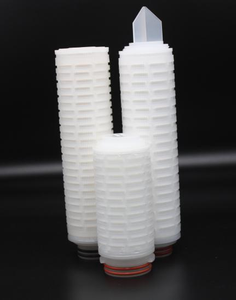

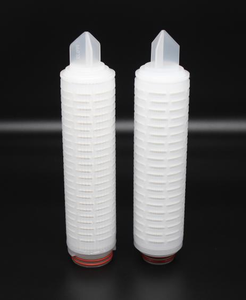

F2S series filter cartridge is made of imported double-layer hydrophilic PES membrane together with non-woven fabric and mesh which is featured for large filtration area of 1.2㎡, high dirt holding capacity and high retention efficiency.
Features
√ Double-layer PES membranes, reliable bacteria
√ retention efficiency
√ Much larger filtration area
√ Broad chemical compatibility
√ Integrity tested
Filtration Area
≥0.6 m2 ×2/10”
Applications
√ Sterile filtration of SVP
√ Sterile filtration of lyophilized powder
√ Vaccine and biological products
√ High Purification Reagent
√ CMIS

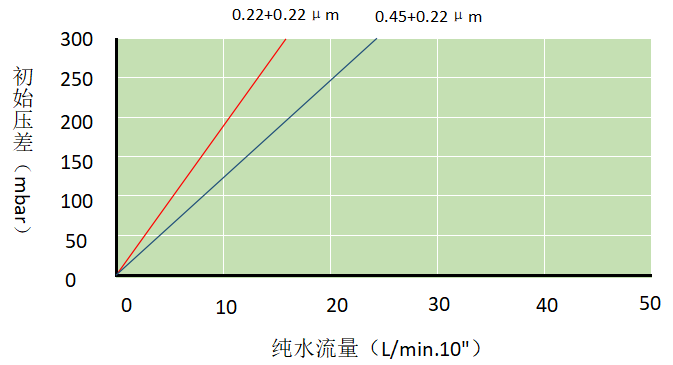

Flow Characteristic
Materials of Construction
Media：Double-layer PES membranes
Cage, Core, End：PP
Support：PP
O-Ring：Silicone, Viton, EPDM, TEV
Biosaftey
Endotoxin：＜0.25EU/ml
Dissolution：≤50mg/10”
Operating Conditions
B1:PP cage＜60℃
B2:PP cage+ SS end liner＜85℃
B3:PP cage+ SS liner＜95℃
Forward direction 4bar (23℃)
Reverse direction 2bar (23℃)
Steam sterilization 123℃@30min
Specification
Outer diameter：68mm
Length：5”, 10”, 20”, 30”, 40”
Integrity Test （Water@23℃）
Bubble point:
0.22+0.1μm≥4.0bar
0.22+0.22μm≥3.7bar
0.45+0.22μm≥3.5bar
Remove Rating（μm）
0.22+0.1
0.22+0.22
0.45+0.22
Ordering Information
F2S | E | 0022 | M3 | 10 | E | B1 |
| Code | Grade | Code | Removal Rating （μm） | Code | End cap | Code | Length（in） | Code | O-ring | Code | Core |
| B | Food | 2210 | 0.22+0.1 | M1 | 222/Fin | 05 | 5 | S | Silicone | B1 | PP |
| E | Electronic | 2222 | 0.22+0.22 | M2 | 222/Flat | 10 | 10 | E | EPDM | B2 | PP+SS end liner |
| P | Pharm | 4522 | 0.45+0.22 | M3 | 226/Fin | 20 | 20 | V | Viton | B3 | PP+SS liner |
| C | Chemical |
|
| M4 | 226/Flat | 30 | 30 | T | TEV |
|
|
|
|
|
|
| M5 | DOE | 40 | 40 |
|
|
|
|

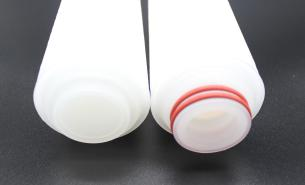

222 Fin
226 Fin
222 Flat
226 Flat
