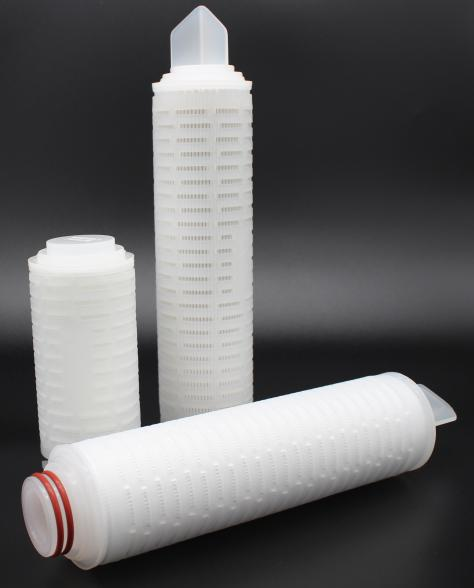

PES Filter Cartridge(single -layer)

F1S series cartridge filter is made of hydrophilic asymmetric PES membrane as media, non-woven fabric and mesh as support layer. Filter Cartridge with good heat resistance is able to withstand multiple steam sterilizations. Each filter cartridge will pass the integrity test before shipment.
Availability:
Quantity:
Product Description

F1S series cartridge filter is made of hydrophilic asymmetric PES membrane as media, non-woven fabric and mesh as support layer. Filter Cartridge with good heat resistance is able to withstand multiple steam sterilizations. Each filter cartridge will pass the integrity test before shipment.

Features

√Hydrophilic asymmetric PES membrane

√ Low precipitation

√ High flow rate and long service life

√ Good heat resistance

Typical Applications

√ Sterile filtration of LVP,SVP

√ Sterile filtration of beer, wine

√ Sterile filtration of lyophilized powder

√ Sterile filtration of mineral water

√ Sterile filtration of disinfectant


Filtration Area

≥0.6 m2 /10”

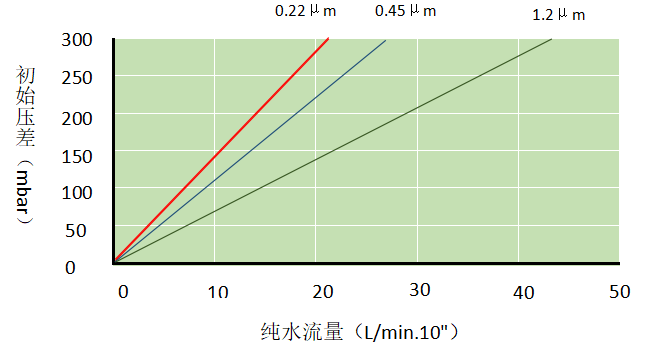

Flow Rate



Biosafety

Endotoxin:<0.25EU/ml

Dissolution:≤50mg/10”


Material of Construction

Media:Single- layer hydrophilic PES membrane

Cage, Core, End:PP

Support:PP

O-Ring:Silicone, Viton, EPDM, TEV

Specification

Outer diameter:68mm

Length:5”, 10”, 20”, 30”, 40”


Operating Conditions

B1:PP cage<60℃

B2:PP cage+ SS end liner<85℃

B3:PP cage+ SS liner <95℃

Forward direction 4bar (23℃)

Reverse direction 2bar (23℃)

Steam sterilization 123℃@30min

Integrity TestWater@23℃)

Bubble Point:

0.1μm≥3.8bar

0.22μm≥3.4bar

0.45μm≥2.3bar

Forward flow:

≤25ml/min.10” @2620mbar

Removal Rating(μm

0.1, 0.22, 0.45, 0.65, 0.8, 1.2, 3.0, 5.0

Ordering Information

F1S

E

0022

M3

10

E

B1


Code

Grade

Code

Removal

Rating

(μm)

Code

End cap

Code

Length(in)

Code

O-ring

Code

Core



B

Food

0010

0.1

M1

222/Fin

05

5

S

Silicone

B1

PP


E

Electronic

0022

0.22

M2

222/Flat

10

10

E

EPDM

B2

PP+SS end liner


P

Pharm

0045

0.45

M3

226/Fin

20

20

V

Viton

B3

PP+SS liner


C

Chemical

0065

0.65

M4

226/Flat

30

30

T

TEV






0080

0.8

M5

DOE

40

40








0100

1.0












0300

3.0












0500

5.0

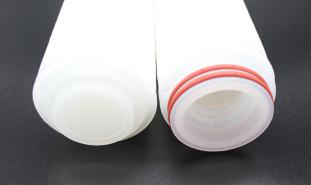

End Cap Types


1

222 Fin


2

226 Fin


3

222 Flat


4

226 Flat
