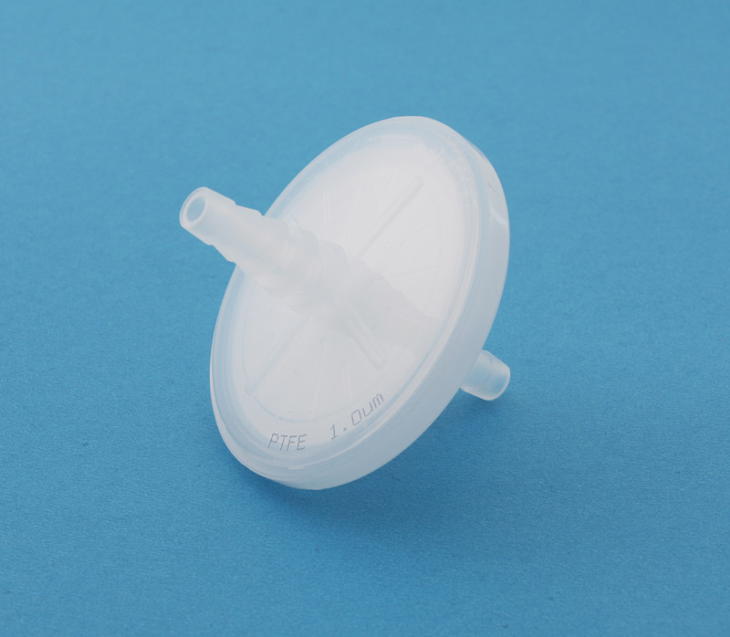

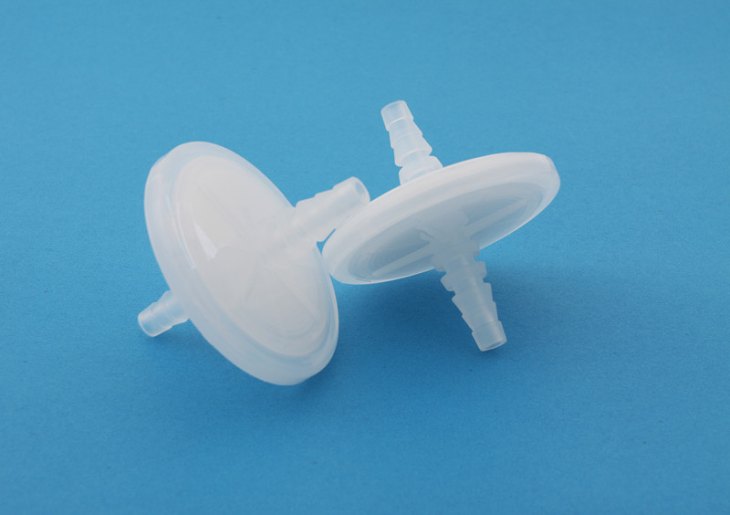

FilterBio 50mm syringe filter is a sterilizing filter for aqueous solutions and venting. It removes microorganisms, particles, precipitates, and undissolved powders larger than nominal pore size, such as 0.22 micron (μm). The 50mm syringe filter is non-pyrogenic and non-toxic. The special construction allows minimal hold-up volume and particle shedding, making this syringe filters ideally suited for the critical needs of the pharmaceutical and biotechnology industries.
Application:
● Small volume liquids
● Sterile venting of small fermenters
● Sterile venting of small containers
● General sterile filtration of gases and air
Features:
● Superior flow rate and high throughputs
● Smart and disposable
● Scalable and reusable
● Good resistance to pressure
Specification:
| Materials of construction | Temperature limit | |
| Filter Medium: PTFE or PES for GMP on a polypropylene support | 130°C (266°F) maximum | |
| Housing: Polypropylene | Pressure limit at ambient temperature | |
| 60psi (4.1bar) | ||
| Dimensions | Connections | |
| Inlet to outlet 45 mm (1.77 in.) | Outlet ： Stepped hose barbs, 6.6 - 11.1mm (1/4 – 3/8in.) diameter | |
| Diameter 56.2 mm (2.21in.) | Inlet ：Stepped hose barbs, 6.6 - 11.1mm (1/4 – 3/8in.) diameter | |
| Filtration area 17.2 cm²（2.6 in²) | ||
| Pore size 0.22 μm,0.45μm,0.8 μm, 1.2μm |
Product Information
Item | Description | Packing (pcs/pk) | ||||
50mm syringe filter, Inlet: Stepped Hose Barb; Outlet: Stepped Hose Barb | ||||||
FBS50PTFE022H | Pore: 0.22μm | Diameter: 50mm | 25 | |||
FBS50PTFE045H | Pore:0.45μm | Diameter: 50mm | 25 | |||
FBS50PTFE022HS | Pore: 0.22μm | Sterile, Diameter: 50mm | 25 | |||
FBS50PTFE045HS | Pore:0.45μm | Sterile, Diameter: 50mm | 25 | |||
FBS50PES022 | Pore: 0.22μm | Diameter: 50mm | 25 | |||
FBS50PES045 | Pore:0.45μm | Diameter: 50mm | 25 | |||
FBS50PES022S | Pore: 0.22μm | Sterile, Diameter: 50mm | 25 | |||
FBS50PES045S | Pore:0.45μm | Sterile, Diameter: 50mm | 25 | |||
FBS50NY022 | Pore: 0.22μm | Diameter: 50mm | 25 | |||
FBS50NY045 | Pore:0.45μm | Diameter: 50mm | 25 | |||
FBS50NY022S | Pore: 0.22μm | Sterile, Diameter: 50mm | 25 | |||
FBS50NY045S | Pore:0.45μm | Sterile, Diameter: 50mm | 25 | |||
FBS50PVDF022H | Pore: 0.22μm | Diameter: 50mm | 25 | |||
FBS50PVDF045H | Pore:0.45μm | Diameter: 50mm | 25 | |||
FBS50PVDF022HS | Pore: 0.22μm | Sterile, Diameter: 50mm | 25 | |||
FBS50PVDF045HS | Pore:0.45μm | Sterile, Diameter: 50mm | 25 | |||
FILTERBIO specializes in manufacturing quality 50mm vent filter of different types among those famous such manufacturers and suppliers in China. With years' experience of supplying 50mm vent filter service, you can rest assured to buy 50mm vent filter made in China with our factory.
