GF Prefilter Syringe Filter

GF Prefilter Syringe Filter FilterBio® GF Pre-filter Syringe Filters are syringe-operated filters with glass fiber prefilter. It’s white color, for the housing and membrane, it’s welded together. C
Availability:
Quantity:
Product Description

Description

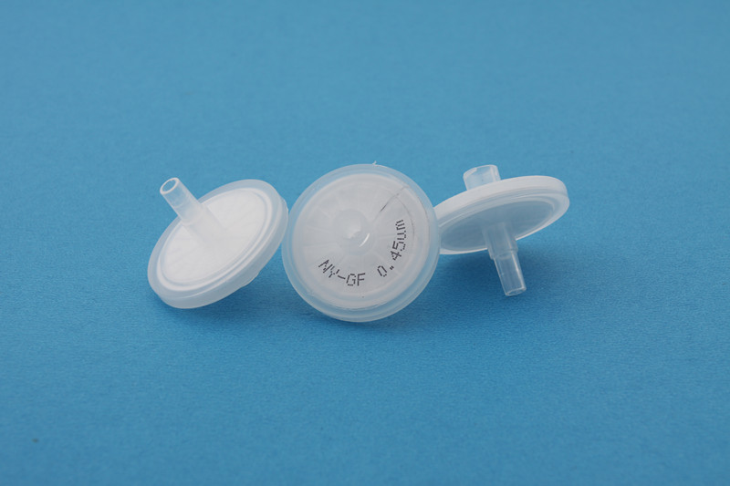

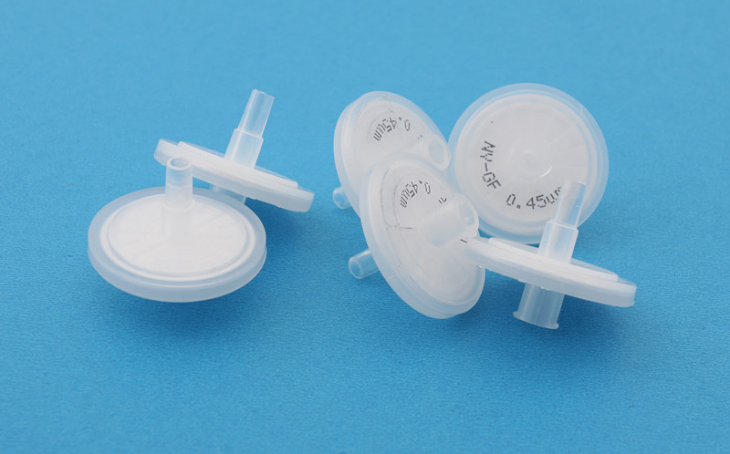

GF Prefilter Syringe Filter

FilterBio® GF Pre-filter Syringe Filters are syringe-operated filters with glass fiber prefilter. It’s white color, for the housing and membrane, it’s welded together. Compared with the common syringe filter, it has better flow rate and better filtration efficiency. The Classic range is available in all of the major membranes including Nylon, PTFE, PVDF, and PES, which are supplied in 13mm, 25mm, 30mm formats in polypropylene housings.

Features:

Experience: All White color

Better Filtration Efficiency: Glass fiber pre-filter

Application Compatibility: Broad range of filtration media meets diverse application needs and best for chromatography application

Sterile: Filters can be purchased pre-sterilized by Gamma radiation and individually packaged

Validated HPLC Performance

HPLC certification which guarantees the filters will not produce extraneous peaks in the UV range.

100% integrity tested with higher burst strength ratings assuring they will perform consistently.

Available in 13 and 25mm sizes and available in sterile, too.

0.45μm for most clarification applications and 0.22μm when fine particulate removal is required. Other pore size are available in 0.8μm to 5μm.

Technical specifications






Parameters

13mm

25mm

30mm


Effective Filtration Area(cm2)

1.09

4.08

5.39


Maximum Pressure

87psi (6.0 bar) at 20 °C

87psi (6.0 bar) at 20 °C

87psi (6.0 bar) at 20 °C


Maximum Operating Temperature

50 °C

50 °C

50 °C


Materials of Construction

Housing: Polypropylene

Housing: Polypropylene

Housing: Polypropylene


Filtration Media

As specified

Holdup volume (μl)

<25

<100

<200


Sample volume (ml)

<10

<100

<200


Connectors

Inlet: Female Luer Lock

Outlet: Male Slip Luer

Inlet: Female Luer Lock

Outlet: Male Slip Luer

Inlet: Female Luer Lock

Outlet: Male Slip Luer


Flow Direction

Inlet: Female Luer Lock

Outlet: Male Slip Luer (MSL)

Inlet: Female Luer Lock

Outlet: Male Slip Luer

Inlet: Female Luer Lock

Outlet: Male Slip Luer


QC control

After manufacturing it in shape, we still focus on testing it to judge whether it is OK and using strictly quality controlled system to forbidden shoddy product.

Every 90 in 100 can be sold to our customer in the end, 10 piece is to be died out.

The shelf life of packaged product is also monitored and controlled within our warehouses to ensure efficient stock rotation.

Each piece through this system are selected after concerning 5 factor with critical specifications set for:

* Bubble point

* Burst pressure

* Membrane adsorption (protein)

* Flow rate

* UV extractables (by HPLC)

Product Information

Item                             Description                                     Packaging(pcs/pk)

Nylon66 Syringe Filter


FBS13NY022G

Pore:0.22μm

Diameter: 13mm

100

FBS13NY045G

Pore:0.45μm

Diameter: 13mm

100

FBS25NY022G

Pore:0.22μm

Diameter: 25mm

100

FBS25NY045G

Pore:0.45μm

Diameter: 25mm

100

FBS30NY022G

Pore:0.22μm

Diameter: 30mm

100

FBS30NY045G

Pore:0.45μm

Diameter: 30mm

100

PTFE Syringe Filter (Hydrophobic)


FBS13PTFE022HG

Pore:0.22μm

Diameter: 13mm

100

FBS13PTFE045HG

Pore:0.45μm

Diameter: 13mm

100

FBS25PTFE022HG

Pore:0.22μm

Diameter: 25mm

100

FBS25PTFE045HG

Pore:0.45μm

Diameter: 25mm

100

FBS30PTFE022HG

Pore:0.22μm

Diameter: 30mm

100

FBS30PTFE045HG

Pore:0.45μm

Diameter: 30mm

100

PTFE Syringe Filter (Hydrophilic)


FBS13PTFE022LG

Pore:0.22μm

Diameter: 13mm

100

FBS13PTFE045LG

Pore:0.45μm

Diameter: 13mm

100

FBS25PTFE022LG

Pore:0.22μm

Diameter: 25mm

100

FBS25PTFE045LG

Pore:0.45μm

Diameter: 25mm

100

FBS30PTFE022LG

Pore:0.22μm

Diameter: 30mm

100

FBS30PTFE045LG

Pore:0.45μm

Diameter: 30mm

100

PES Syringe Filter


FBS13PES022G

Pore:0.22μm

Diameter: 13mm

100

FBS13PES045G

Pore:0.45μm

Diameter: 13mm

100

FBS25PES022G

Pore:0.22μm

Diameter: 25mm

100

FBS25PES045G

Pore:0.45μm

Diameter: 25mm

100

FBS30PES022G

Pore:0.22μm

Diameter: 30mm

100

FBS30PES045G

Pore:0.45μm

Diameter: 30mm

100

PVDF Syringe Filter (Hydrophobic)


FBS13PVDF022HG

Pore:0.22μm

Diameter: 13mm

100

FBS13PVDF045HG

Pore:0.45μm

Diameter: 13mm

100

FBS25PVDF022HG

Pore:0.22μm

Diameter: 25mm

100

FBS25PVDF045HG

Pore:0.45μm

Diameter: 25mm

100

FBS30PVDF022HG

Pore:0.22μm

Diameter: 30mm

100

FBS30PVDF045HG

Pore:0.45μm

Diameter: 30mm

100

PVDF Syringe Filter (Hydrophilic)


FBS13PVDF022LG

Pore:0.22μm

Diameter: 13mm

100

FBS13PVDF045LG

Pore:0.45μm

Diameter: 13mm

100

FBS25PVDF022LG

Pore:0.22μm

Diameter: 25mm

100

FBS25PVDF045LG

Pore:0.45μm

Diameter: 25mm

100

FBS30PVDF022LG

Pore:0.22μm

Diameter: 30mm

100

FBS30PVDF045LG

Pore:0.45μm

Diameter: 30mm

100

CA Syringe Filter (Cellulose Acetate )


FBS13CA022G

Pore:0.22μm

Diameter: 13mm

100

FBS13CA045G

Pore:0.45μm

Diameter: 13mm

100

FBS25CA022G

Pore:0.22μm

Diameter: 25mm

100

FBS25CA045G

Pore:0.45μm

Diameter: 25mm

100

FBS30CA022G

Pore:0.22μm

Diameter: 30mm

100

FBS30CA045G

Pore:0.45μm

Diameter: 30mm

100

MCE Syringe Filter


FBS13MCE022G

Pore:0.22μm

Diameter: 13mm

100

FBS13MCE045G

Pore:0.45μm

Diameter: 13mm

100

FBS25MCE022G

Pore:0.22μm

Diameter: 25mm

100

FBS25MCE045G

Pore:0.45μm

Diameter: 25mm

100

FBS30MCE022G

Pore:0.22μm

Diameter: 30mm

100

FBS30MCE045G

Pore:0.45μm

Diameter: 30mm

100

FILTERBIO specializes in manufacturing quality gf prefilter syringe filter of different types among those famous such manufacturers and suppliers in China. With years' experience of supplying gf prefilter syringe filter service, you can rest assured to buy gf prefilter syringe filter made in China with our factory.
