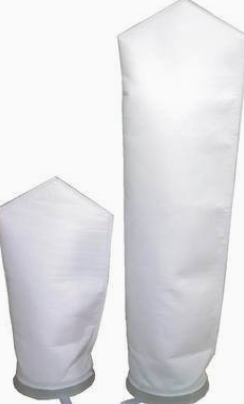

BPF series filter bags are made of high-quality PP and PE with high flow and high dirt holding capacity, and are ideal for
pre-filtration in the chemical, pharmaceutical, and water treatment industries.
Application
√ Pre-filtration in water treatment
√ Chinese medicine extraction pre-filtration
√ Oral liquid production pre-filtration
√ Decarburization of API
√ Chemical filtration
Sepecfication
1 : φ180mm×420mm
2：φ180mm×810mm
Media PE / PP
Removal rating (um) 0.5, 1, 3, 5, 10, 20, 30, 50
Circle Material Stainless steel, PP, PE
Operating Condition
Max Temperature: PE ＜120℃ PP ＜80℃
Max Pressure: PE 2.0bar (20℃), 1.0bar (120℃) PP 2.0bar (20℃), 1.0bar (80℃)
