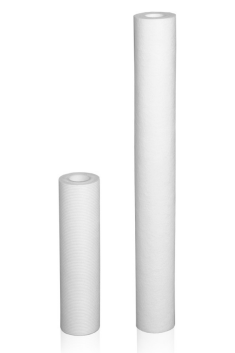

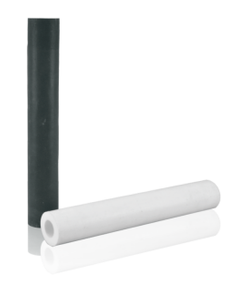

RPF series filter cartridge is made of graded structure PP fiber which can provides high particles removal efficiency, high flow rate and long service time.
Material of Constrution
Media: PP
Core, End: PP
End cap: 222Fin, 226Fin, 222Flat, 226Flat, DOE
Feature
√ Economic
√ Large filtration area
√ High particles removal efficiency
√ High dirt-holding capacity
Removal rating (um)
0.5, 1, 3, 5, 10, 20, 30, 50
Application
√ Organic solution pre-filtration
√ Drinking water
√ Pre-filtration of pure water
Specification
Outer diameter: 63mm
Inside diameter: 28mm
Length
5”, 10”, 20”, 30”, 40”
Operating Condition
√ Operating Temperature: ＜60℃
√ PH range: 1--14
√ Max forward direction: 2.0bar
